Taming the Chaos: AutoPipeline for Medical Image Processing#

TLDR; From Raw Data to Research-Ready in Minutes#

AutoPipeline bridges the gap between raw clinical data and research analysis, making it easier for imaging researchers of all experience levels to work with complex medical imaging data.

By standardizing the processing pipeline and capturing provenance information, it also improves reproducibility - a crucial aspect of scientific research.

The Medical Imaging Data Problem#

Ever spent hours organizing messy DICOM files from different scanners and institutions? Medical imaging datasets are notoriously complex - with multiple scan types, segmentation masks, and treatment plans all interconnected but scattered across folder structures that seem designed to confuse.

As an imaging researcher or student, you've probably faced this frustration:

  • Folder chaos: Hundreds of nested directories with cryptic names
  • Format soup: DICOM files that need conversion to research-friendly formats
  • Relationship puzzles: CT scans that reference segmentation masks that reference treatment plans
  • Name confusion: Different institutions using different terms for the same anatomical structures

AutoPipeline: Streamlined Medical Imaging Workflow#

AutoPipeline is the core automation feature of med-imagetools designed to rescue you from these headaches. It provides a streamlined, reproducible workflow that:

  1. Crawls through your messy DICOM directories to discover all files
  2. Indexes the metadata and builds relationships between different series
  3. Processes linked series together, applying transformations as needed
  4. Organizes the output in a clean, standardized structure
  5. Tracks everything it does for complete reproducibility

Think of it as your personal research assistant that handles all the tedious data preparation work, letting you focus on the exciting science!

How AutoPipeline Works#

Behind the scenes, AutoPipeline brings together several powerful components:

flowchart TD
    subgraph Ingest["Ingest 📂 + 📇"]
        A[Input DICOM Directory]
        B[Crawler]
        C[Index File]
        A --> B --> C
    end

    subgraph Relationship_Builder["Relationship Builder 🕸️ "]
        D[Interlacer]
        E[Query Results]
        D --> E
    end

    subgraph Processing["Processing 🖼️ + 🔧"]
        F[Sample Input]
        G["MedImage Objects: Scan/VectorMask"]
        H["Transforms (optional): Resample, Windowing"]
        I[Processed Images]
        F --> G --> H --> I
    end

    subgraph Output["Output 📁 + 📝"]
        J[Sample Output]
        K[NIfTI Files]
        J --> K
    end

    Ingest --> Relationship_Builder
    Relationship_Builder --> Processing
    Processing --> Output

Crawler: The Data Explorer#

First, AutoPipeline dispatches the Crawler to search recursively through your input directories. The Crawler identifies all DICOM files and extracts key metadata like:

  • Patient identifiers
  • Study and series UIDs
  • Modality information (CT, MR, RTSTRUCT, etc.)
  • Spatial characteristics
  • References between series

This information is compiled into an index that serves as a map of your entire dataset.

Interlacer: The Relationship Builder#

Next, the Interlacer takes this index and constructs a hierarchical forest that represents the relationships between different series. It understands the DICOM standards and knows, for example, that:

  • An RTSTRUCT (radiation therapy structure) references a specific CT series
  • A PET scan might be registered to a corresponding CT
  • A treatment plan (RTPLAN) might hold the information about the referenced RTSTRUCT used in a RTDOSE file

The Interlacer can visualize these relationships and query them based on modality combinations you're interested in.

Sample Processing: The Conversion Engine#

When you specify which modalities you want (like "CT,RTSTRUCT"), AutoPipeline:

  1. Queries the Interlacer for samples matching your criteria
  2. Loads the DICOM data into memory as MedImage objects
  3. Applies transformations like resampling or intensity windowing
  4. Saves the results in standard research formats (NIfTI)

For segmentation data (RTSTRUCT or SEG), AutoPipeline can match region names (like "parotid" or "GTV") to standardized keys using regular expressions, solving the problem of inconsistent naming across institutions.

Using AutoPipeline: A Quick Start#

Using AutoPipeline is simple!

The command line interface provides an intuitive way to process your data:

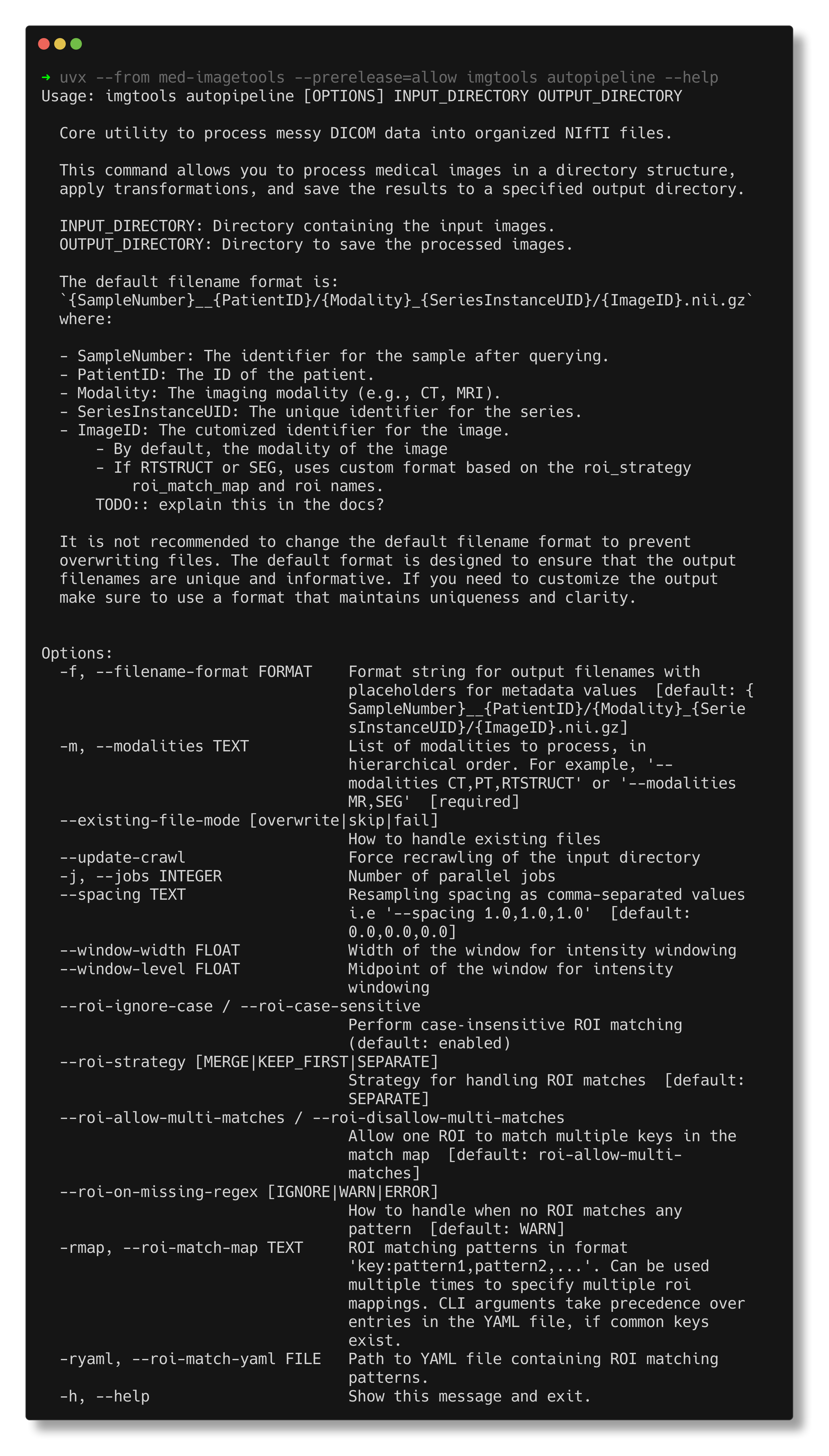

Full CLI Interface

API Reference

autopipeline --help

# Basic usage with CT and RT structure sets
imgtools autopipeline \
    --modalities CT,RTSTRUCT \
    /path/to/messy/dicoms/ \
    /path/to/output/

# Adding transformations
imgtools autopipeline\
    --modalities CT,RTSTRUCT \
    --spacing 1.0,1.0,1.0 \
    --window-width 400 --window-level 40 \
    /path/to/dicoms/ \
    /path/to/output/

# Force update the index if you have new files
imgtools autopipeline \
    --modalities CT,RTSTRUCT \
    --update-crawl \
    /path/to/dicoms/ \
    /path/to/output/

Standardizing Region Names with ROI Matching#

A common challenge in medical imaging is inconsistent naming of regions of interest (ROIs). AutoPipeline solves this with powerful pattern matching.

Med-ImageTools implements the ROIMatcher class, which allows you to define pattern matching rules for your ROIs. AutoPipeline will match the ROI names from your RTSTRUCT or SEG files against these patterns and standardize them in the output files.

We flexibly support describing these in the CLI and/or in a YAML file.

imgtools autopipeline\
    --modalities CT,RTSTRUCT \
    -rmap "GTV:GTV,gtv,Gross.*Volume" \
    -rmap "Parotid_L:LeftParotid,PAROTID_L,L_Parotid" \
    -rmap "Parotid_R:RightParotid,PAROTID_R,R_Parotid" \
    -rmap "Cord:SpinalCord,Cord,Spinal_Cord" \
    -rmap "Mandible:mandible.*" \
    /path/to/dicoms/ \
    /path/to/output/

Create a YAML file like this:

# roi_patterns.yaml
GTV: ["GTV", "gtv", "Gross.*Volume"]
Parotid_L: ["LeftParotid", "PAROTID_L", "L_Parotid"]
Parotid_R: ["RightParotid", "PAROTID_R", "R_Parotid"]
Cord: ["SpinalCord", "Cord", "Spinal_Cord"]
Mandible: ["mandible.*"]

Then run AutoPipeline with the --roi-match-yaml option:

imgtools autopipeline\
    --modalities CT,RTSTRUCT \
    --roi-match-yaml roi_patterns.yaml

Advanced Features#

Parallel Processing#

Processing large datasets? AutoPipeline can parallelize operations:

imgtools autopipeline /path/to/dicoms/ /path/to/output/ \
    --modalities CT,RTSTRUCT \
    --jobs 8  # Use 8 parallel processes

Custom Output Formatting#

Control your output file structure with formatting patterns:

imgtools autopipeline /path/to/dicoms/ /path/to/output/ \
    --modalities CT,RTSTRUCT \
    --filename-format "{PatientID}/{Modality}/{ImageID}.nii.gz"

Handling Existing Files#

Choose how to handle existing files in your output directory:

imgtools autopipeline /path/to/dicoms/ /path/to/output/ \
    --modalities CT,RTSTRUCT \
    --existing-file-mode skip  # Options: skip, overwrite, fail
