TreatmentResponseExperiment Tutorial#

Table of Contents#

Context#

  • Developed to address shortcomings of the old @treatmentResponse data structures
  • Designed to be highly flexible, extendable, and performant for high-dimensional data
  • Inspired by the design of the SummarizedExperiment and MultiAssayExperiment classes

Summarized Features#

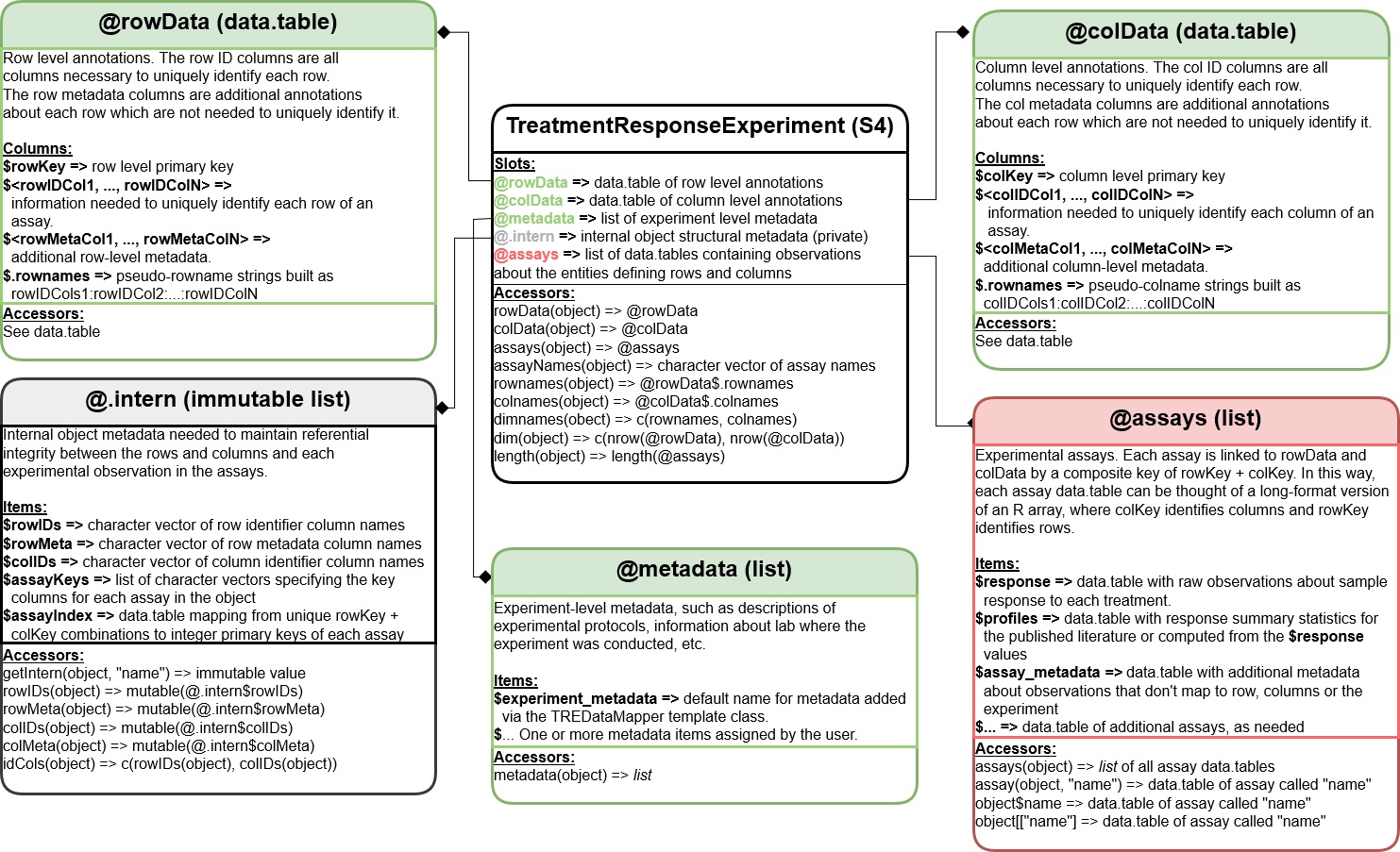

class diagram

The TreatmentResponseExperiment(TRE) is a specialized data class from the CoreGx package, organize and store treatment response data in a structured way.

  • holds information about how biological samples respond to various treatments
  • treatment usually means applying one or more drugs to a biological sample (e.g., cell lines, tissues)
  • the observed viability (survival) of the sample after treatment and any computed metrics/profiles (e.g., IC50, AUC) are stored in the assays slot

Structure#

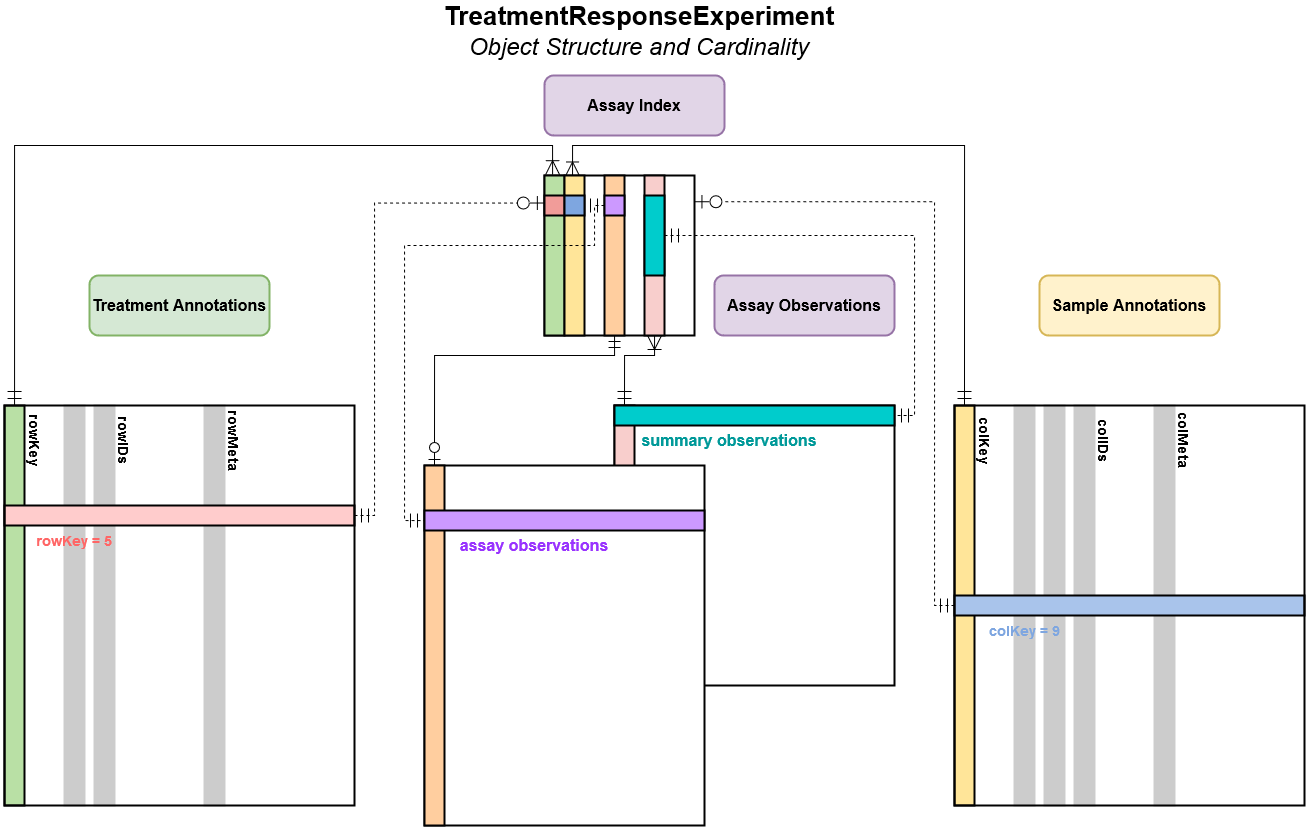

Diagram of Structure#

This structure makes it easy to work with drug response data. It's designed to be flexible, allowing easy access and manipulation while being performant when computing over millions of data points.

structure diagram

Note

For a more detailed explanation of the structure, see the TreatmentResponseExperiment Class Vignette.

Key Components#

To best understand the TreatmentResponseExperiment, we will conceptualize it as a data structure with four main components.

Tip

You can access these respective components using the rowData, colData, assays, and metadata functions, e.g.:

rowData(tre)
assays(tre)
  1. rowData - The treatments you're testing
    • rowIDs: the columns that identify unique treatment experiment (make up the rowKey)
    • rowKey: the unique identifier for each treatment experiment
    • Examples of identifiers:
      • "Doxorubicin at 10 µM" (a single drug at a specific concentration)
      • "Combination of Drugs A+B at 10 µM and 5 µM respectively, for 24 hours" (a combination treatment, specifying both drugs and their concentrations, and duration)
  2. colData - The cell lines or patient samples
    • colIDs: the columns that identify unique biological samples (make up the colKey)
    • colKey: the unique identifier for each biological sample
    • Examples of identifiers:
      • "MCF7, technical replicate B2"
      • "Primary tumor cells from patient ID-456, isolation batch 2"
  3. assays - The actual results of your experiments
    • Example:
      • assay("viability"): a table where each cell shows how well a specific sample survived after a specific treatment
      • Doxorubicin::10µM for MCF7::B2 might show a viability of 0.75 (meaning 75% of the cells survived)
      • assay("profiles"): a table where each unique treatment experiment has a computed metric like IC50 or AUC
      • Doxorubicin for MCF7 might show an IC50 value of 0.5 µM
  4. metadata - General notes about your experiment
    • "Experiment run by Dr. Smith on January 15, 2025"
    • "All samples were treated for 24 hours at 37°C"
    • "Date of data collection: January 20, 2025"
    • "Data source: XYZ Biobank"

Example Pipelines that create a TreatmentResponseExperiment#

We have a handful of examples that demonstrate the various approaches, given different data sources and formats, to create a TreatmentResponseExperiment.

Within each of these repositories, you will find a:

  • the workflow/Snakefile file that defines the steps to create the TreatmentResponseExperiment
  • the docs/data_sources.md page on the github website that describes the data sources and their formats
  • the TreatmentResponseExperiment object created by the pipeline in Github Actions and uploaded to the releases section of the repository

These examples are meant to show how the TreatmentResponseExperiment becomes the standardized data structure for treatment response data, regardless of the source or format of the data.

They can then be easily used in downstream analyses, such as creating a PharmacoSet, performing drug response analysis, or integrating with other data types.
